3500/22-01-01-00 288055-01 Bently Nevada 3500/22M TDI Module With 146031-01 I/O Module and USB cable
The Bently Nevada 3500/22-01-01-00 (288055-01) is a Frame Interface Module (FIM) designed specifically for critical rotating machinery condition monitoring and protection systems. It is compatible with the Bently Nevada 3500 series monitoring system. This module serves as the core communication hub between the system and external control platforms (such as DCS, PLC, and SCADA). It supports both Modbus RTU (RS485) and Modbus TCP/IP (Ethernet) protocols, ensuring high-speed and stable data transmission.
Core Features
Dual Communication Protocol Support: Integrated RS485 and Ethernet interfaces, compatible with Modbus RTU and TCP/IP protocols, facilitate system integration and remote monitoring.
Real-Time Data Transmission: Key machine parameters such as vibration, displacement, speed, temperature, and alarm status can be uploaded in real time to support predictive maintenance.
High-Reliability Design: Utilizing industrial-grade components with strong immunity to electromagnetic interference, it is suitable for 24/7 continuous operation. Modular structure: Consists of the 288055-01 main card and the 146031-01 Ethernet daughter card, facilitating maintenance and upgrades.
Technical Specifications
Model: 3500/22-01-01-00 (288055-01)
Communication Interfaces: 2 x RS485/RS232, 1 x RJ45 Ethernet
Protocols Supported: Modbus RTU, Modbus TCP/IP
Baud Rate: 1200–38400 bps (configurable)
Mounting Method: Inserted into slot 1 or 2 of a 3500 rack, powered by the backplane
Operating Temperature: 0°C to +70°C
Storage Temperature: -40°C to +85°C
Relative Humidity: 5%–95% (non-condensing)
Protection Rating: IP20 (must be installed in a control cabinet)
Compliant Standards: IEC 61010, IEC 61326 (EMC)
Application Scenarios
This product is widely used in key rotating equipment such as turbines, generators, compressors, pumps, and fans in industries such as power, petrochemicals, metallurgy, papermaking, water treatment, and manufacturing. It helps users visualize equipment status, provide early warning of faults, and enable intelligent maintenance decision-making.

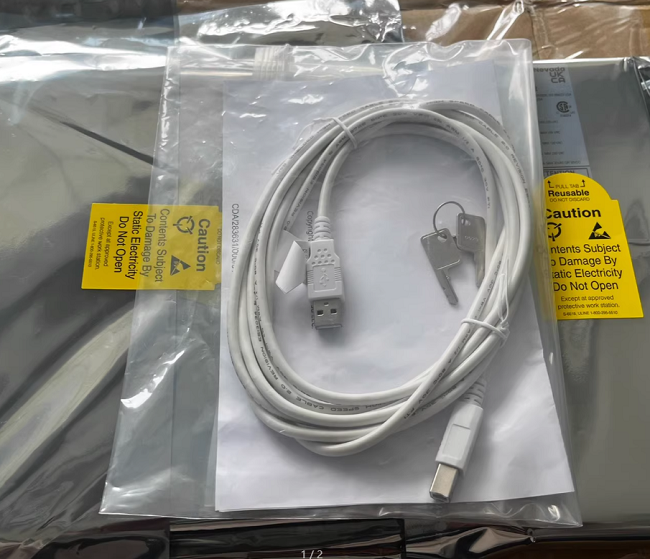

Product Images
